| Machine Name |
Automatic Screw Tightening |
| Machine Type |
Screw Tightening – Single Screw Driver |
| Function |
Screw Tightening |

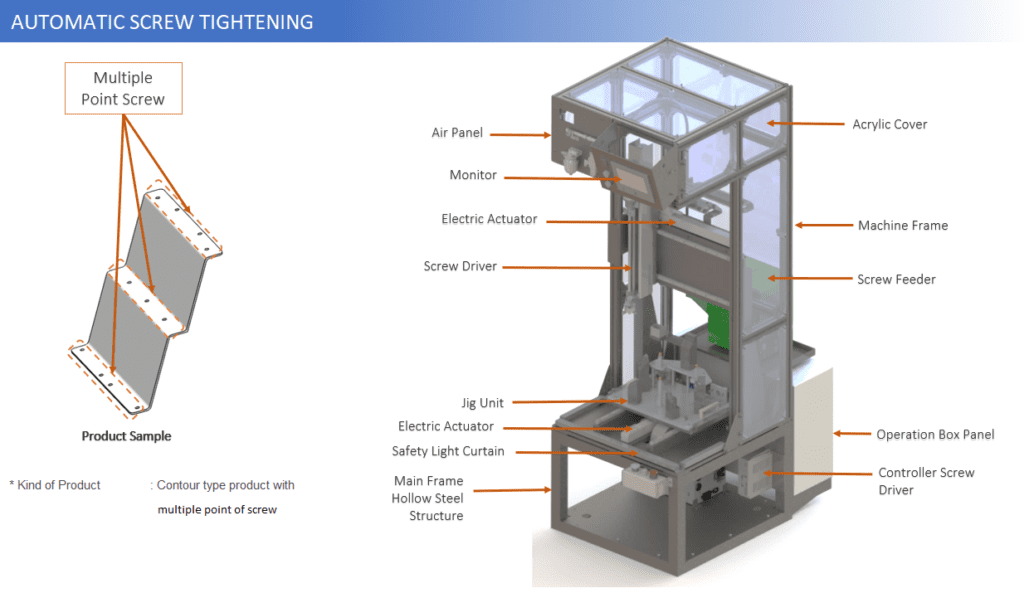

This machine used to screwing process. By using an electric actuator on X,Y and Z axis movement allows this machine to do the screwing process at many points precisely and automatically. |
| Tightening Device |
Screw Driver |
| Machine Dimention |
1000x700x2000 |
| Machine Color |
Powder Coating Evory / Conditional Based on Request |
| Machine Weight |
400 Kg |
| Accessories |
PC, Towel Lamp Indicator (Conditional) |
| Machine Time (Screw Tigtening Process) |
3,5 Sec |
|
| Air Supply |
0,4 Mpa |
| Input Power |
220 VAC, 1 Phase, 50Hz |
| Current Max |
10 Ampere |
| Specifications |
Control |
PLC |
| Operation Panel |
Touch Panel / Conditional Based on Request |
| Output Operation |
|
| External Input |
|
| Note |
This machine works automatically.Operator set up the product into jig manually, press start button, then the screw tightening process run automatically. |
