| Machine Name |
Automatic Screw Tightening |
| Machine Type |
Screw Tightening – Manual |
| Function |
Screw Tightening |
This machine used to screwing process with manual process |
| Tightening Device |
Screw Driver |
| Machine Dimention |
510X265X645 |
| Machine Color |
Powder Coating Evory / Conditional Based on Request |
| Machine Weight |
20 Kg |
| Accessories |
PC, Towel Lamp Indicator (Conditional) |
| Machine Time (Screw Tigtening Process) |
3,5 Sec |
| Air Supply |
0,4 Mpa |
| Input Power |
220 VAC, 1 Phase, 50Hz |
| Current Max |
10 Ampere |
| Specifications |
Control |
PLC |
| Operation Panel |
Touch Panel / Conditional Based on Request |
| Output Operation |
|
| External Input |
|
| Note |

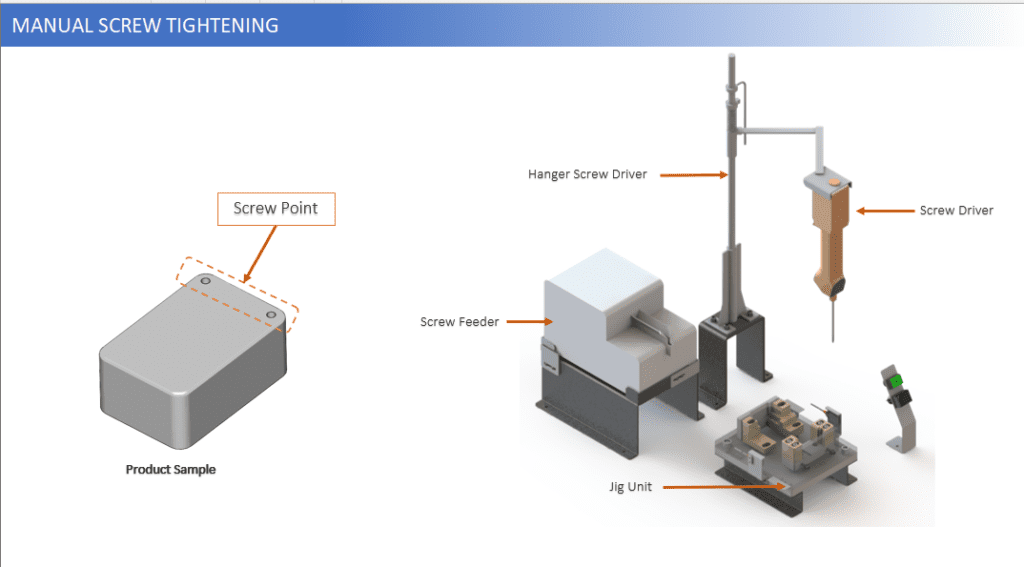

This screw tightening machine is manual operated machine. Operator set up the product into jig and moving the hanger of screw driver manually into product. Because of this manual operation, it is possible to screwing of product with multiple scew point position. |
